Ductless Air Conditioning: A Practical Guide to How It Works, Benefits, and Installation Tips

How Ductless Air Conditioning Works: Components, Inverter Control, and Zoning

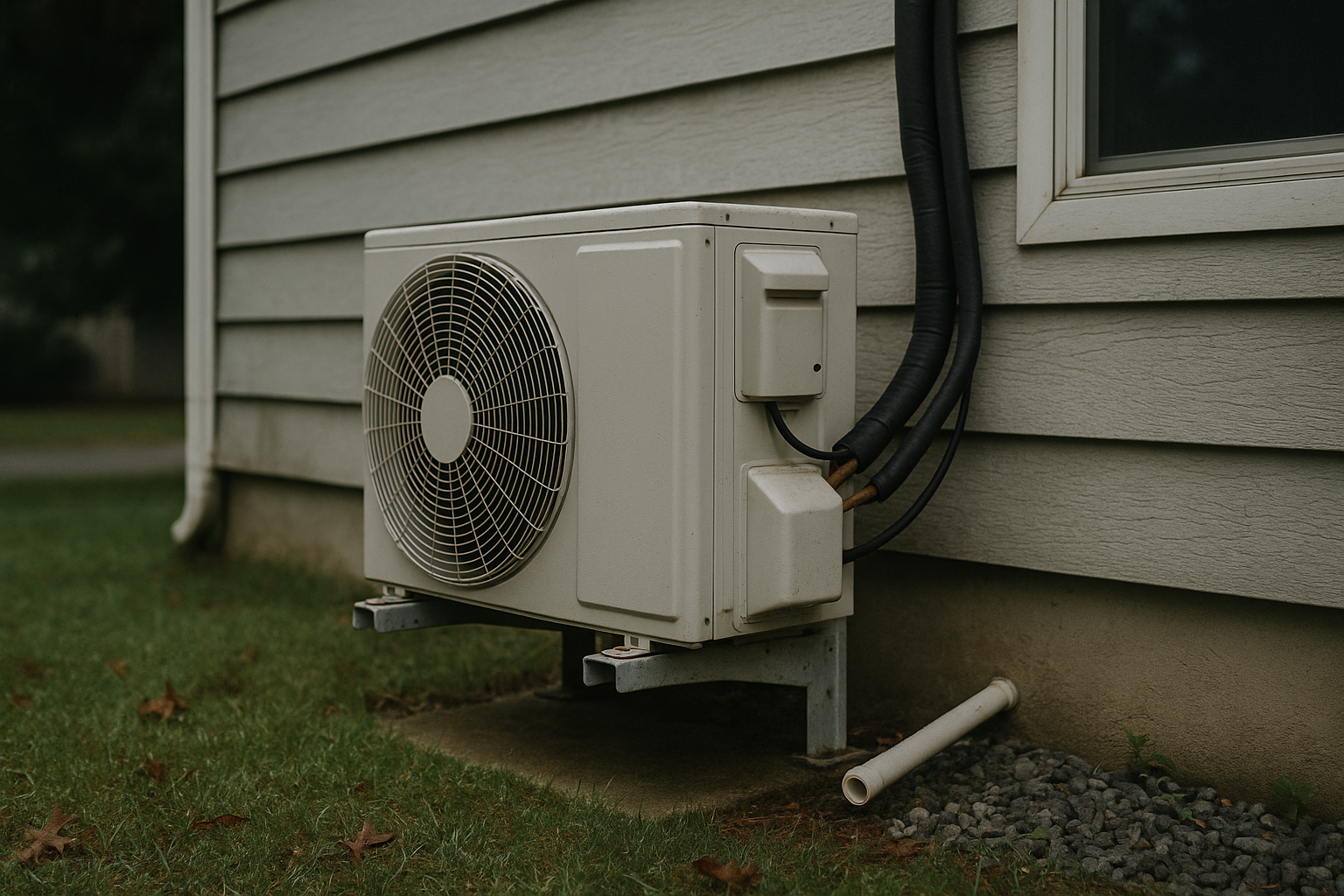

Ductless air conditioning is a compact version of the familiar vapor-compression cycle, repackaged to target individual rooms instead of a whole home through ductwork. At its core, an outdoor unit houses a compressor, fan, and heat exchanger; an indoor air handler contains a coil and fan; and a small, insulated line set carries refrigerant between them through a discreet wall penetration. Many systems are reversible heat pumps that can cool in summer and heat in shoulder seasons (and, with the right model, even deep winter), while some are cooling-only. Because air is conditioned right where it is needed and not pushed through ducts, the system sidesteps typical duct losses that studies have estimated can reach double-digit percentages in leaky or uninsulated runs.

Three design features define the ductless experience:
– Inverter-driven compressors modulate capacity instead of toggling on and off. Rather than blast at full speed and coast, the system ramps precisely to meet the load, which can smooth indoor temperatures and reduce wasted starts.
– Zoning separates spaces. One outdoor unit may serve a single indoor head (a “single-zone”) or multiple indoor heads (“multi-zone”), each with its own temperature setting and schedule. That allows you to cool a home office during work hours without chilling the entire house.
– Short, insulated refrigerant paths and on-board sensors help maintain efficiency and control humidity. Many indoor units include controls for fan speed, vane direction, and dehumidification modes, useful during muggy evenings when sensible cooling needs are low.

Performance metrics mirror central systems but use updated test procedures in many regions. Seasonal efficiency is expressed as SEER or SEER2 (cooling) and HSPF or HSPF2 (heating for heat pump variants). Modern ductless equipment commonly achieves SEER2 values in the high teens to upper 20s, depending on size and features, though actual results depend on climate, installation, and setpoints. Noise is another hallmark: indoor units often operate around 20–40 dB(A) at low to medium fan speeds—roughly library quiet—while outdoor units commonly sit in the 50–60 dB(A) range. Options for wall-mounted, floor-console, and ceiling cassette air handlers make it easier to fit architecture and furniture plans without remodeling. The result is a system that behaves like a dimmer switch for comfort: continuously adjustable, responsive, and focused on the spaces that matter most.

Benefits and Trade-offs: Efficiency, Comfort, Air Quality, and Aesthetics

The primary appeal of ductless air conditioning is targeted efficiency. By conditioning only occupied zones and avoiding duct leakage, homeowners can often trim unnecessary runtime compared with whole-house cooling or room units that overcool. Field data and program evaluations in various climates have reported meaningful energy reductions when replacing electric resistance heat and window ACs with ductless heat pumps, with savings contingent on setpoints, building envelope quality, and usage patterns. Add inverter modulation to the mix, and you gain steadier temperatures and lower cycling losses, which can translate to calmer acoustics and less wear on components.

Comfort is multi-dimensional, and ductless systems address several facets at once. Zoning helps resolve hot bedrooms over garages, harsh afternoon sunrooms, or basements that feel clammy. Air handlers can fine-tune fan speed and vane angle to keep drafts gentle, while dry or dehumidify modes can curb stickiness during shoulder seasons. Because there are no long duct runs through attics or crawlspaces, the air that leaves an indoor head is the air you feel—minimal temperature loss between coil and occupant. Many users appreciate the quick response time; a small office or studio can go from stuffy to comfortable in minutes without spinning up a large central blower.

Indoor air quality gets a modest boost through local filtration and low infiltration from duct leaks. Typical indoor units include washable pre-filters and fine mesh screens that capture larger particulates like dust and lint; some models add higher-grade media or supplemental filtration technologies. While these are not substitutes for dedicated whole-home filtration, the proximity of filter to occupant means the air you breathe has just passed through a screen. Maintenance is simple: rinsing filters every few weeks in heavy-use seasons prevents performance drop and helps keep coils clean.

There are trade-offs to weigh:
– Visual impact: wall cassettes are plainly visible. Thoughtful placement above doorways or use of ceiling cassettes can soften the look.
– Multiple heads can raise installed cost compared with a single central air handler; however, they deliver independent control that central systems typically achieve only with complex zoning.
– Line set routing requires planning to avoid long surface runs. Slim covers can match siding or trim to reduce visual clutter.
– Remote controls and small thermostats are easy to use but can be misplaced; wall-mounted controllers help standardize operation in shared spaces.
For many homes—especially additions, retrofits, or high-performance envelopes—these trade-offs are reasonable, yielding efficient comfort without ductwork or major renovation.

Sizing and System Selection: Loads, Zones, Climate Fit, and Comparisons

Right-sizing a ductless system is as important as choosing to go ductless in the first place. Instead of relying on rules of thumb like “BTUs per square foot,” begin with a room-by-room load calculation that accounts for insulation levels, window area and orientation, air leakage, occupancy, and local weather data. A professional calculation (often referred to in the trade as a Manual J approach) estimates sensible and latent loads so you can match indoor head capacities to real needs. Oversizing is common with room units; it can lead to short cycles, poor humidity control, and unnecessary cost. Undersizing, by contrast, results in constant high-speed operation, increased noise, and missed setpoints on extreme days.

Zoning choices flow from how spaces are used. A single-zone system is ideal for:
– An addition or converted attic that the central system can’t reach.
– A home office that needs independent schedules from the rest of the house.
– A primary suite where nighttime temperatures and dehumidification are priorities.
Multi-zone systems make sense when several areas need independent control, but it’s wise to avoid connecting too many small heads to one outdoor unit if those spaces rarely call for cooling at the same time; turndown ratios matter for efficiency and comfort at low loads. When in doubt, fewer, appropriately sized heads are easier to tune and maintain.

Climate shapes selection. In mixed or humid climates, prioritize latent (humidity) performance and indoor fan controls; in dry hot climates, focus on sensible capacity and coil sizing. For systems that also provide heat, look for low-ambient heating capability if winters dip well below freezing, and confirm defrost strategies and pan heaters are suitable for your region. Efficiency ratings help compare options, but published numbers are lab-based; your building’s envelope and habits dictate what you actually pay.

How does ductless compare to other options?
– Versus central AC: ductless avoids duct losses and offers zoning without dampers, but central can be tidy if ducts are already well-designed and insulated.
– Versus window or portable units: ductless is quieter, more efficient, and more secure, though upfront costs are higher.
– Versus whole-house fans or evaporative coolers: these can be frugal in arid climates but are weather-dependent; ductless offers predictable comfort regardless of outdoor humidity.
Choosing well means aligning capacity with usage, not just square footage, and letting lived patterns drive where you place each indoor head.

Installation Planning: Placement, Electrical, Condensate, and Practical Site Tips

A smooth ductless installation starts on paper. A site visit should map where indoor heads will sit, the path of the line sets, the outdoor unit location, and the route for power and condensate. Most line set penetrations are modest—often a 2.5–3 inch hole—with a slight downward pitch to shed water. Keeping line sets short and direct helps efficiency and appearance; many manufacturers specify maximum equivalent lengths and elevation changes, so a tidy route is more than cosmetic. Outdoor units need firm, level support on a pad or wall brackets, with clearance on sides and above for airflow and service access. Elevating the base in snowy or flood-prone areas protects the coil and electronics.

Indoors, placement matters. Wall-mounted heads do well high on outside walls to minimize visible line set covers; avoid aiming directly at seating to reduce drafts. Ceiling cassettes can disappear into drop ceilings or framed recesses and distribute air evenly in larger rooms. Floor consoles help in spaces with vaulted ceilings or limited wall space. Think through furniture, door swings, and window treatments so louvers can move freely. Noise-sensitive rooms benefit from selecting fan settings that balance airflow and quiet, and choosing walls that aren’t shared with bedrooms when mounting outdoor units.

Key technical considerations:
– Electrical: most systems require a dedicated 120V or 240V circuit sized per nameplate, with a local disconnect at the outdoor unit. A licensed electrician should confirm panel capacity and code compliance.
– Condensate: gravity drains are simple but need a continuous slope; where that isn’t possible, a condensate pump can lift water to a suitable drain. Include cleanouts to make maintenance easy.
– Weather and UV: use rated insulation for line sets and protect with covers where exposed; seal wall penetrations with exterior-grade materials to deter pests and moisture.
– Permits and codes: many jurisdictions require mechanical and electrical permits, and some utilities offer rebates for high-efficiency systems that meet specified ratings. Document model numbers and keep commissioning data for rebate applications.
Install time varies with complexity. A straightforward single-zone can be completed in a day, including vacuum, pressure test, and startup checks; multi-zone projects or challenging line set routes may span multiple days. A thorough commissioning—verifying refrigerant charge per method, confirming temperature split, checking condensate flow, and calibrating controls—sets the system up for reliable service.

Conclusion: Living with Ductless—Costs, Care, Troubleshooting, and Practical Takeaways

Owning a ductless system is as much about daily comfort as it is about mindful operation. Upfront costs vary by region and complexity, but a common range for professionally installed single-zone systems is in the few-thousand-dollar bracket, with multi-zone projects reaching higher due to additional heads, electrical work, and finish details. Operating costs depend on duty cycle, setpoint discipline, and electricity rates. A simple example: if a 12,000 BTU (1 ton) unit averages 700 watts during steady cooling for six hours a day, that’s about 4.2 kWh daily. At $0.18 per kWh, monthly cost for that zone would be roughly $23 (4.2 × 30 × 0.18), acknowledging that real usage fluctuates with weather and occupancy.

Routine maintenance is straightforward and pays back in quiet, efficient operation:
– Rinse or vacuum washable filters every 2–4 weeks in heavy-use seasons; mark a calendar reminder.
– Keep at least 18–24 inches of clear space around the outdoor unit; trim vegetation and clear leaves or snow from intake and discharge.
– Inspect line set insulation annually for UV damage and reseal wall penetrations if caulk has cracked.
– Schedule professional service every 1–2 years to clean coils, verify refrigerant charge by approved methods, and test condensate drains.
Small habits help, too: moderate setpoint changes minimize hard ramp-ups, and using “dry” or dehumidify mode during humid evenings can improve comfort without deep temperature drops.

Basic troubleshooting can resolve many nuisances. If an indoor unit drips, check the filter and ensure the drain line isn’t kinked; algae in the line may require cleaning. If cooling feels weak, verify that doors and windows are closed, filters are clean, and fan speed suits the room size. Unusual noises from the outdoor unit can be as simple as debris on the fan guard. If issues persist—ice on coils, repeated error codes, or frequent breaker trips—pause operation and call a qualified technician; refrigerant handling and electrical diagnostics require training and certification.

If you’re weighing your options, consider this summary: ductless air conditioning offers zoned, quiet comfort that aligns energy use with real needs, especially in homes without existing ducts or in spaces that a central system can’t serve well. Plan sizing around how you live, place indoor heads thoughtfully, and give attention to details like condensate routing and electrical capacity. With sensible maintenance and realistic expectations, a ductless system can become a dependable, efficient teammate in your home’s comfort strategy for many seasons to come.
